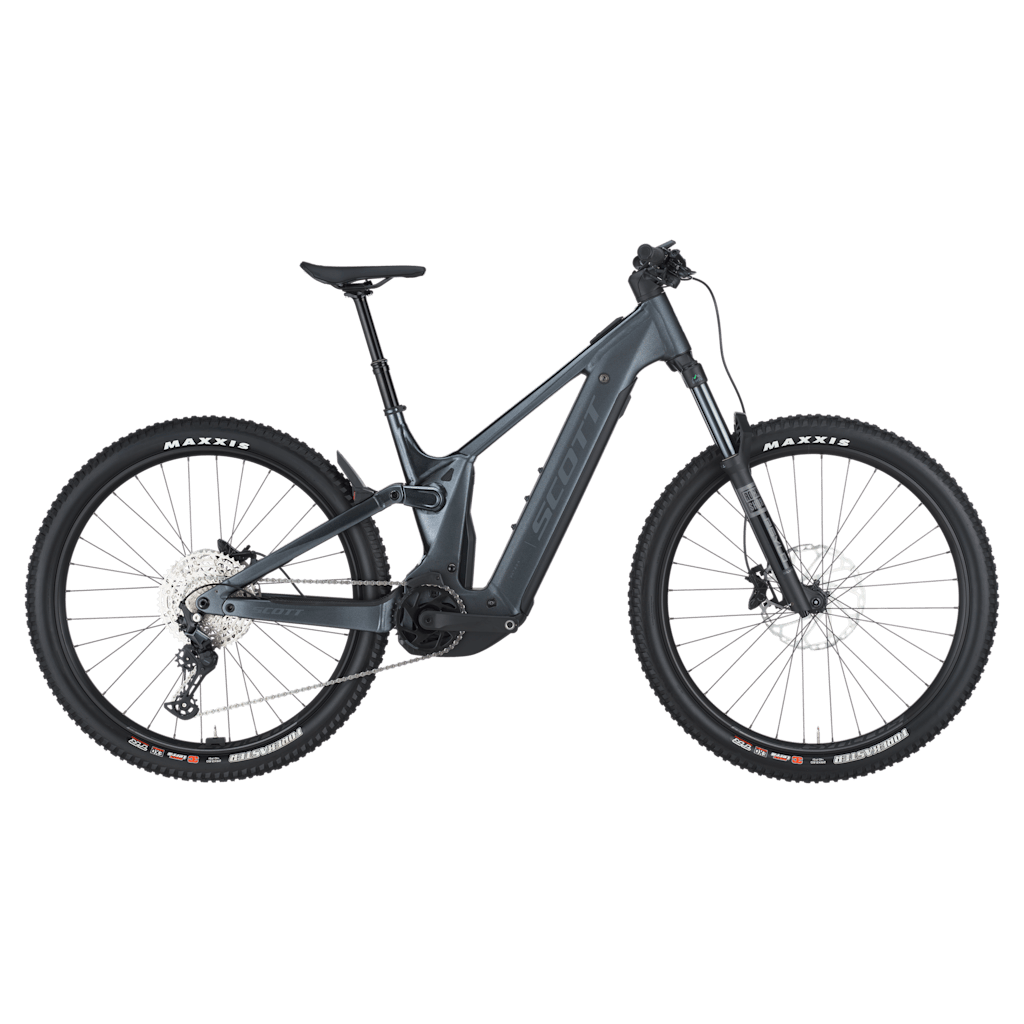

SCOTT Patron 920 Bike
Model : 423363
Key Features
- RockShox Psylo Silver RC Air 150mm Fork
- X-Fusion Nude, TracLoc, 150mm
- Shimano Deore 12 Speed
- Shimano 4 Piston Disc Brakes
- Syncros MD-30 rims
- Maxxis Foldable Tires
- Syncros Dropper Post and Parts
- Syncros int. rear fender light
- Bosch Performance CX Drive Unit with 800Wh Battery
1. Color : granite black
2. Size
AUD9,999.99
SPECIFICATIONS
-
The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the mountain biker looking to unlock new zones and ride more terrain than ever, the ALL-NEW Patron eRIDE holsters the cutting edge of full-power moter and battery technology in a package built for singletrack domination. Harness the power. Master the trails.
Please note that bike specifications are subject to change without prior notice -
Frame
Alloy Frame
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
Bosch PowerMore Ready -
Travel
Front: 150mm / Rear: 150mm -
Fork
RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / 150mm travel -
Rear Shock
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 150-100-Lockout / T185X55mm
-
Remote System
SCOTT TracLoc 2 Technology
Suspension & Dropper Remote
3 modes -
Drive Unit
Bosch Performance CX
EU: 25kmh / INT: 20mph -
Battery
PowerTube 800Wh -

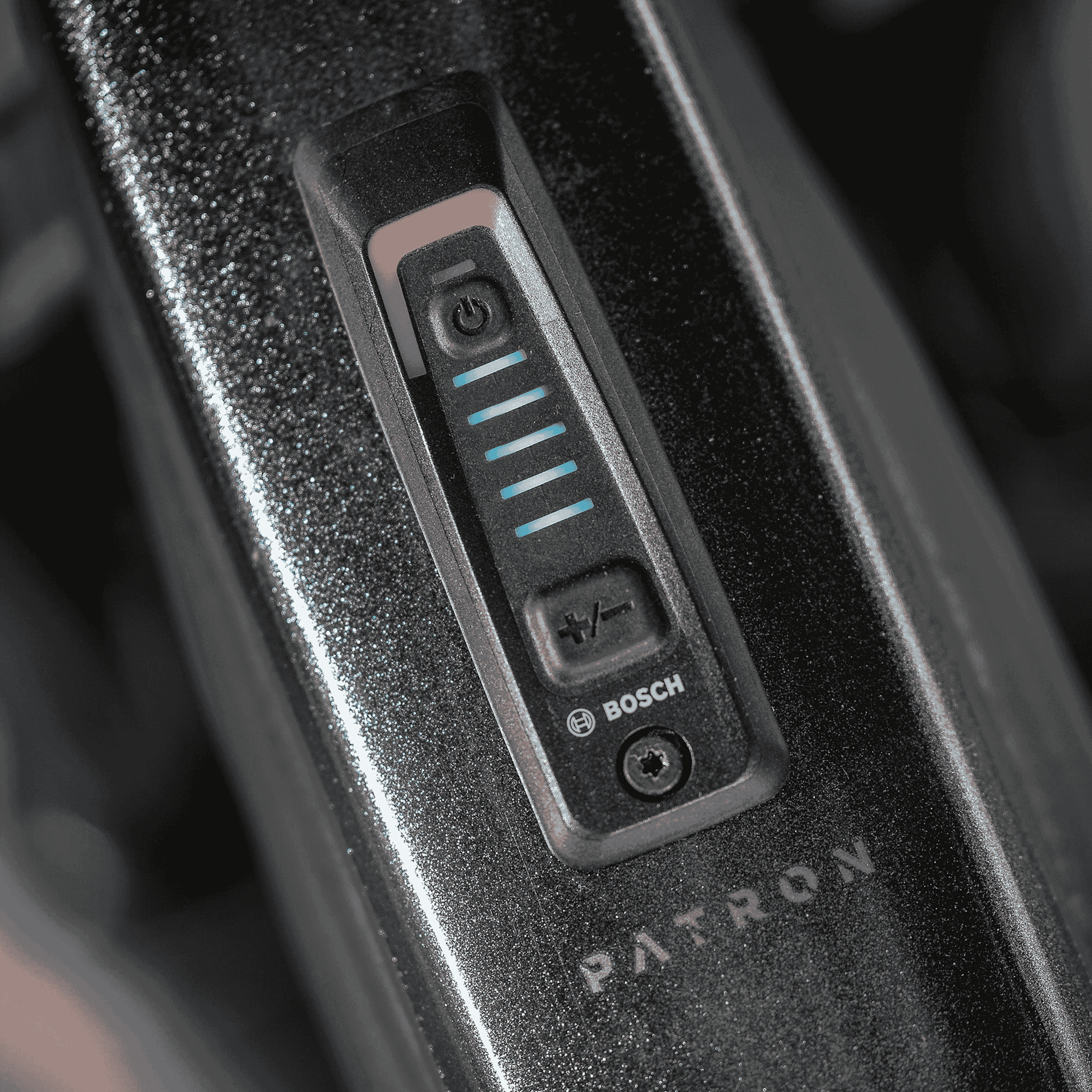

Display
Bosch System Controller
Mini Remote & Intuvia 100 -
Charger
4A Charger -
Rear Derailleur
Shimano Deore RD-M6100 SGS
Shadow Plus / 12 Speed -
Shifters
Shimano Deore SL-M6100-IR / Rapidfire Plus -
Crankset
FSA Alloy -
Chainguide
e*thirteen / e*spec Slider -
Chainring
FSA 12 Speed 34T chainring -
Chain
Shimano CN-M6100 -
Cassette
Shimano CS-M6100 / 10-51 -
Brakes
Shimano MT520 4 Piston Disc -
Rotor
Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm -
Handlebar
Syncros Hixon 2.0 Alloy 6061
Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm
Syncros Endurance lock-on grips -
H'stem
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8" -
Seatpost
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm -
Seat
Syncros Tofino-E 2.5 Regular -
Headset
Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula ECT-148M / Boost 148x12mm -
Spokes
Stainless Black -
Rims
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
Front Tire
Maxxis Forekaster 29x2.6"
120TPI Foldable Bead
EXO / TR Tubeless ready
3C Maxx Terra -
Rear Tire
Maxxis Forekaster 29x2.6"
120TPI Foldable Bead
EXO / TR Tubeless ready
3C Maxx Terra -
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed -
Approx weight in KG
25.8 -
Approx weight in LBS
56.88 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
