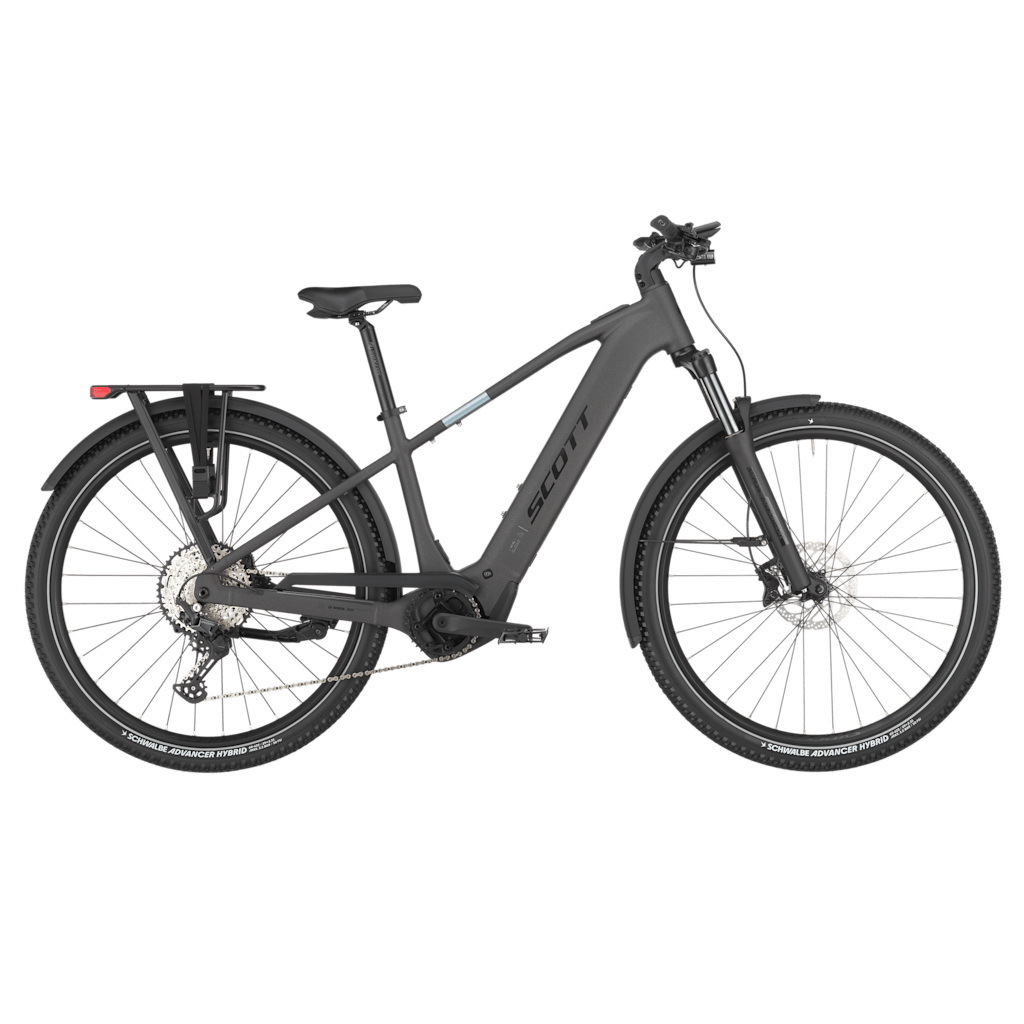

SCOTT Axis 20 Bike
Model : 423330
Key Features
- Suntour 120mm Fork
- Shimano Deore 12 Speed
- Shimano Disc Brakes
- Syncros bike trailer adapter
- Lezyne front / Syncros rear-rack integrated rear Lights
- Racktime carrier Snap It 2.0 compatible, 27KG
1. Color : midnight grey
2. Size
-
The perfect bridge between urban cruising and mountain biking.
The ALL-NEW SCOTT AXIS is equipped with the latest Bosch Performance CX motor and 600Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the ALL-NEW Syncros Heavy Duty rack that can carry up to 27kg, and the ALL NEW Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.
As comfy as you'd like. Ride Axis.
Please note that bike specifications are subject to change without prior notice -
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing
Side extraction battery
UDH Interface / 12x148mm with 52mm Chainline -
Travel
120mm -
Fork
SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 120mm Travel -
Drive Unit
Bosch Performance CX
EU: 25kmh
-
Battery
PowerTube 600Wh -
Display
Bosch System Controller
Intuvia 100
Mini remote -
Charger
2A Charger -
Rear Derailleur
Shimano Deore RD M6100SGS 12 Speed -
Shifters
Shimano Deore SL-M6100RA -
Crankset
FSA CK-220 165mm -
Chainguide
Syncros -
Chainring
FSA 36T -
Chain
KMC E12S -
Cassette
Shimano CS-M6100-12 10-51T 12 Speed -
Brakes
Shimano BR-MT420 Disc Brakes -
Rotor
Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 180mm -
Handlebar
Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise
Syncros Lock On Grip -
H'stem
Syncros with front Light mount and Intuvia 100 mount -
Seatpost
Syncros M3.0 / 31.6 -
Seat
Syncros Capilano -
Headset
Acros / 1.5"- 1.5"
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HB-TC50015BB CL / 15x110mm -
Hub (Rear)
Shimano FH-TC500HMSBB CL / Boost 12x148mm -
Spokes
Black Spokes -
Rims
Syncros X18 Disc -
Front Tire
Schwalbe Advancer 60-622 Wired -
Rear Tire
Schwalbe Advancer 60-622 Wired -
Lights
Front Lezyne Hecto E65
Rear Lezyne Rack Light -
Rack
Racktime Micro Rack SnapIt 2.0 27KG -
Pedals
VP VPE-506 -
Extras
Curana alloy profile Fender / Ursus Kickstand -
Approx weight in KG
28.3 -
Approx weight in LBS
62.39 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
SYNCROS ADAPTER FOR BIKE TRAILER
Need to bring your kids or pets along for the ride or just carry your grocery shopping bags?
No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy your time with your loved ones on your e-bike.
BOSCH EBIKE SYSTEM - 600 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 600 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender. The battery weight is also reduced to 3.9 kg thanks to its high energy density 205WH/kg.
SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.
AXIS GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
